The document outlines the process of importing data into the Neo4j graph database, detailing various methods, tools, and best practices for data transformation from relational databases. It emphasizes the advantages of graph databases in handling relationships and offers concrete examples, including the use of CSV and Cypher for data loading. Additionally, it provides insights into performance requirements and addresses common challenges in data quality during importation.
![LOAD CSV
// manage tx
USING PERIODIC COMMIT 100000
// load csv row by row
LOAD CSV WITH HEADERS FROM "file:address.csv" AS csv
// transform values
WITH DISTINCT toUpper(csv.City) AS city, toUpper(csv.Zip) AS zip
// find nodes
MATCH (c:City {name: city}), (z:Zip {name: zip})
// create relationships
MERGE (c)-[:HAS_ZIP_CODE]->(z);](https://image.slidesharecdn.com/relationaltographimport-150612000543-lva1-app6891/85/Relational-to-Graph-Import-26-320.jpg)
Relational to Graph - Import
- 1. Relational to Graph Importing Data into Neo4j June 2015 Michael Hunger michael@neo4j.org |@mesirii

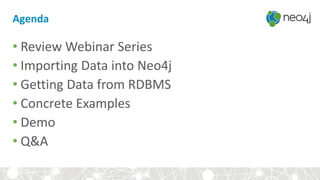

- 2. Agenda • Review Webinar Series • Importing Data into Neo4j • Getting Data from RDBMS • Concrete Examples • Demo • Q&A
- 3. Webinar Review Relational to Graph

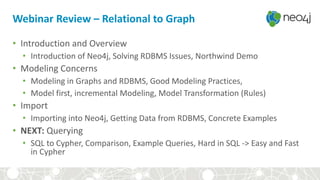

- 4. Webinar Review – Relational to Graph • Introduction and Overview • Introduction of Neo4j, Solving RDBMS Issues, Northwind Demo • Modeling Concerns • Modeling in Graphs and RDBMS, Good Modeling Practices, • Model first, incremental Modeling, Model Transformation (Rules) • Import • Importing into Neo4j, Getting Data from RDBMS, Concrete Examples • NEXT: Querying • SQL to Cypher, Comparison, Example Queries, Hard in SQL -> Easy and Fast in Cypher
- 5. Why are we doing this? The Graph Advantage

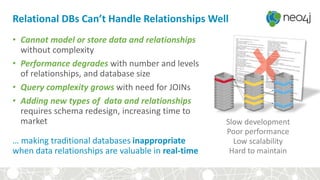

- 6. Relational DBs Can’t Handle Relationships Well • Cannot model or store data and relationships without complexity • Performance degrades with number and levels of relationships, and database size • Query complexity grows with need for JOINs • Adding new types of data and relationships requires schema redesign, increasing time to market … making traditional databases inappropriate when data relationships are valuable in real-time Slow development Poor performance Low scalability Hard to maintain

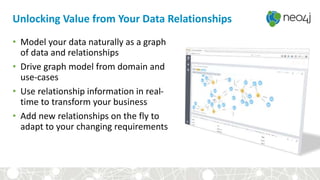

- 7. Unlocking Value from Your Data Relationships • Model your data naturally as a graph of data and relationships • Drive graph model from domain and use-cases • Use relationship information in real- time to transform your business • Add new relationships on the fly to adapt to your changing requirements
- 8. High Query Performance with a Native Graph DB • Relationships are first class citizen • No need for joins, just follow pre- materialized relationships of nodes • Query & Data-locality – navigate out from your starting points • Only load what’s needed • Aggregate and project results as you go • Optimized disk and memory model for graphs

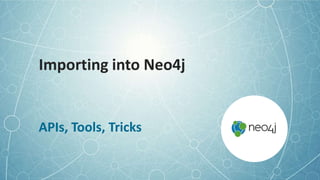

- 9. Importing into Neo4j APIs, Tools, Tricks

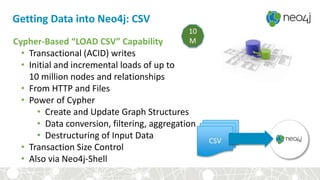

- 10. Getting Data into Neo4j: CSV Cypher-Based “LOAD CSV” Capability • Transactional (ACID) writes • Initial and incremental loads of up to 10 million nodes and relationships • From HTTP and Files • Power of Cypher • Create and Update Graph Structures • Data conversion, filtering, aggregation • Destructuring of Input Data • Transaction Size Control • Also via Neo4j-Shell CSV 10 M

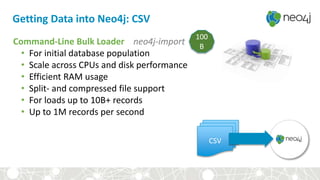

- 11. Getting Data into Neo4j: CSV Command-Line Bulk Loader neo4j-import • For initial database population • Scale across CPUs and disk performance • Efficient RAM usage • Split- and compressed file support • For loads up to 10B+ records • Up to 1M records per second CSV 100 B

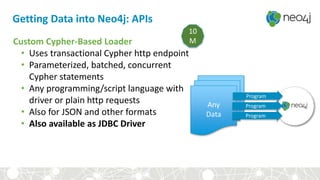

- 12. Getting Data into Neo4j: APIs Custom Cypher-Based Loader • Uses transactional Cypher http endpoint • Parameterized, batched, concurrent Cypher statements • Any programming/script language with driver or plain http requests • Also for JSON and other formats • Also available as JDBC Driver Any Data Program Program Program 10 M

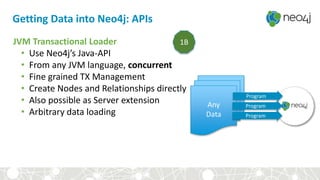

- 13. Getting Data into Neo4j: APIs JVM Transactional Loader • Use Neo4j’s Java-API • From any JVM language, concurrent • Fine grained TX Management • Create Nodes and Relationships directly • Also possible as Server extension • Arbitrary data loading Any Data Program Program Program 1B

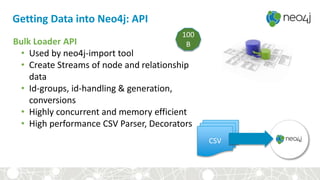

- 14. Getting Data into Neo4j: API Bulk Loader API • Used by neo4j-import tool • Create Streams of node and relationship data • Id-groups, id-handling & generation, conversions • Highly concurrent and memory efficient • High performance CSV Parser, Decorators CSV 100 B

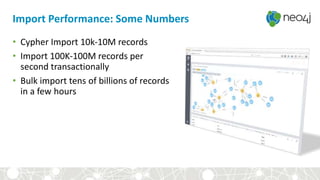

- 15. Import Performance: Some Numbers • Cypher Import 10k-10M records • Import 100K-100M records per second transactionally • Bulk import tens of billions of records in a few hours

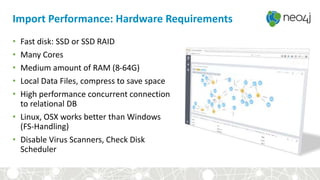

- 16. Import Performance: Hardware Requirements • Fast disk: SSD or SSD RAID • Many Cores • Medium amount of RAM (8-64G) • Local Data Files, compress to save space • High performance concurrent connection to relational DB • Linux, OSX works better than Windows (FS-Handling) • Disable Virus Scanners, Check Disk Scheduler

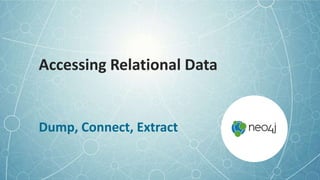

- 17. Accessing Relational Data Dump, Connect, Extract

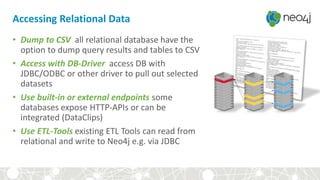

- 18. Accessing Relational Data • Dump to CSV all relational database have the option to dump query results and tables to CSV • Access with DB-Driver access DB with JDBC/ODBC or other driver to pull out selected datasets • Use built-in or external endpoints some databases expose HTTP-APIs or can be integrated (DataClips) • Use ETL-Tools existing ETL Tools can read from relational and write to Neo4j e.g. via JDBC

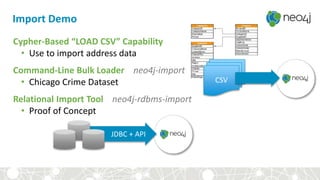

- 20. Import Demo Cypher-Based “LOAD CSV” Capability • Use to import address data Command-Line Bulk Loader neo4j-import • Chicago Crime Dataset Relational Import Tool neo4j-rdbms-import • Proof of Concept JDBC + API CSV

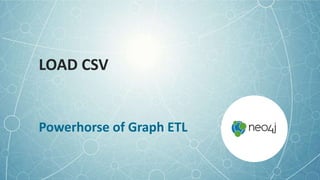

- 21. LOAD CSV Powerhorse of Graph ETL

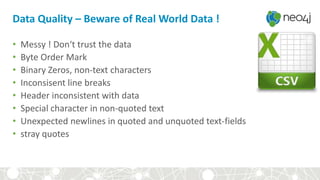

- 22. Data Quality – Beware of Real World Data ! • Messy ! Don‘t trust the data • Byte Order Mark • Binary Zeros, non-text characters • Inconsisent line breaks • Header inconsistent with data • Special character in non-quoted text • Unexpected newlines in quoted and unquoted text-fields • stray quotes

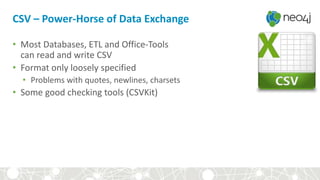

- 23. CSV – Power-Horse of Data Exchange • Most Databases, ETL and Office-Tools can read and write CSV • Format only loosely specified • Problems with quotes, newlines, charsets • Some good checking tools (CSVKit)

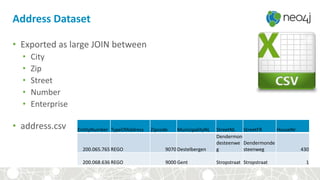

- 24. Address Dataset • Exported as large JOIN between • City • Zip • Street • Number • Enterprise • address.csv EntityNumber TypeOfAddress Zipcode MunicipalityNL StreetNL StreetFR HouseNr 200.065.765 REGO 9070 Destelbergen Dendermon desteenwe g Dendermonde steenweg 430 200.068.636 REGO 9000 Gent Stropstraat Stropstraat 1

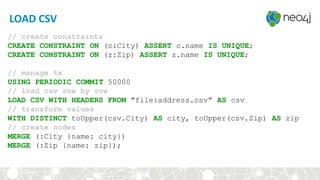

- 25. LOAD CSV // create constraints CREATE CONSTRAINT ON (c:City) ASSERT c.name IS UNIQUE; CREATE CONSTRAINT ON (z:Zip) ASSERT z.name IS UNIQUE; // manage tx USING PERIODIC COMMIT 50000 // load csv row by row LOAD CSV WITH HEADERS FROM "file:address.csv" AS csv // transform values WITH DISTINCT toUpper(csv.City) AS city, toUpper(csv.Zip) AS zip // create nodes MERGE (:City {name: city}) MERGE (:Zip {name: zip});

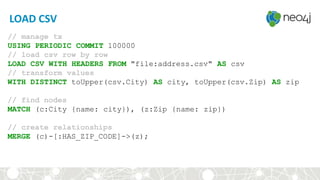

- 26. LOAD CSV // manage tx USING PERIODIC COMMIT 100000 // load csv row by row LOAD CSV WITH HEADERS FROM "file:address.csv" AS csv // transform values WITH DISTINCT toUpper(csv.City) AS city, toUpper(csv.Zip) AS zip // find nodes MATCH (c:City {name: city}), (z:Zip {name: zip}) // create relationships MERGE (c)-[:HAS_ZIP_CODE]->(z);

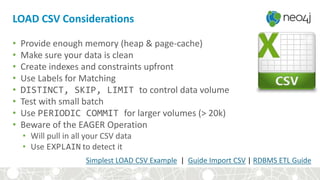

- 27. LOAD CSV Considerations • Provide enough memory (heap & page-cache) • Make sure your data is clean • Create indexes and constraints upfront • Use Labels for Matching • DISTINCT, SKIP, LIMIT to control data volume • Test with small batch • Use PERIODIC COMMIT for larger volumes (> 20k) • Beware of the EAGER Operation • Will pull in all your CSV data • Use EXPLAIN to detect it Simplest LOAD CSV Example | Guide Import CSV | RDBMS ETL Guide
- 28. s Demo
- 29. Mass Data Bulk Importer neo4j-import --into graph.db

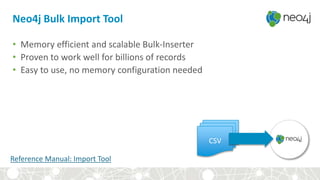

- 30. Neo4j Bulk Import Tool • Memory efficient and scalable Bulk-Inserter • Proven to work well for billions of records • Easy to use, no memory configuration needed CSV Reference Manual: Import Tool

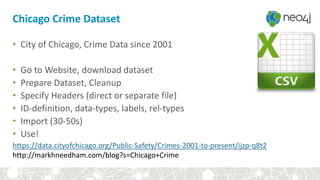

- 31. Chicago Crime Dataset • City of Chicago, Crime Data since 2001 • Go to Website, download dataset • Prepare Dataset, Cleanup • Specify Headers (direct or separate file) • ID-definition, data-types, labels, rel-types • Import (30-50s) • Use! https://data.cityofchicago.org/Public-Safety/Crimes-2001-to-present/ijzp-q8t2 http://markhneedham.com/blog?s=Chicago+Crime

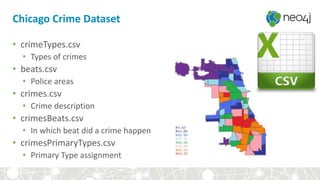

- 32. Chicago Crime Dataset • crimeTypes.csv • Types of crimes • beats.csv • Police areas • crimes.csv • Crime description • crimesBeats.csv • In which beat did a crime happen • crimesPrimaryTypes.csv • Primary Type assignment

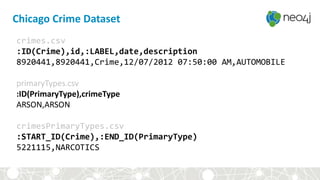

- 33. Chicago Crime Dataset crimes.csv :ID(Crime),id,:LABEL,date,description 8920441,8920441,Crime,12/07/2012 07:50:00 AM,AUTOMOBILE primaryTypes.csv :ID(PrimaryType),crimeType ARSON,ARSON crimesPrimaryTypes.csv :START_ID(Crime),:END_ID(PrimaryType) 5221115,NARCOTICS

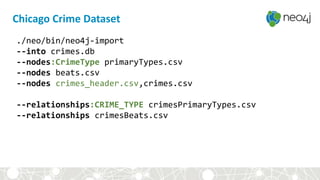

- 34. Chicago Crime Dataset ./neo/bin/neo4j-import --into crimes.db --nodes:CrimeType primaryTypes.csv --nodes beats.csv --nodes crimes_header.csv,crimes.csv --relationships:CRIME_TYPE crimesPrimaryTypes.csv --relationships crimesBeats.csv
- 35. s Demo

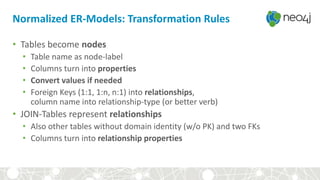

- 38. Normalized ER-Models: Transformation Rules • Tables become nodes • Table name as node-label • Columns turn into properties • Convert values if needed • Foreign Keys (1:1, 1:n, n:1) into relationships, column name into relationship-type (or better verb) • JOIN-Tables represent relationships • Also other tables without domain identity (w/o PK) and two FKs • Columns turn into relationship properties

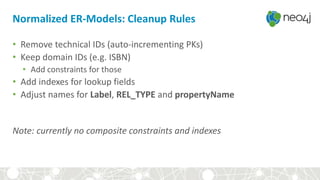

- 39. Normalized ER-Models: Cleanup Rules • Remove technical IDs (auto-incrementing PKs) • Keep domain IDs (e.g. ISBN) • Add constraints for those • Add indexes for lookup fields • Adjust names for Label, REL_TYPE and propertyName Note: currently no composite constraints and indexes

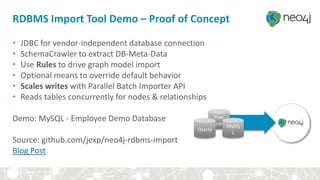

- 40. RDBMS Import Tool Demo – Proof of Concept • JDBC for vendor-independent database connection • SchemaCrawler to extract DB-Meta-Data • Use Rules to drive graph model import • Optional means to override default behavior • Scales writes with Parallel Batch Importer API • Reads tables concurrently for nodes & relationships Demo: MySQL - Employee Demo Database Source: github.com/jexp/neo4j-rdbms-import Blog Post Post gres MySQ L Oracle
- 41. s Demo
- 42. Architecture & Integration “Polyglot Persistence”

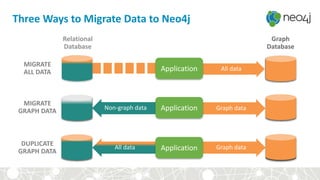

- 43. MIGRATE ALL DATA MIGRATE GRAPH DATA DUPLICATE GRAPH DATA Non-graph data Graph data Graph dataAll data All data Relational Database Graph Database Application Application Application Three Ways to Migrate Data to Neo4j

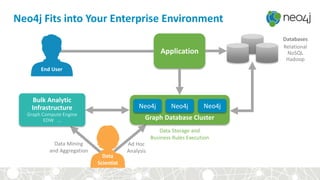

- 44. Data Storage and Business Rules Execution Data Mining and Aggregation Neo4j Fits into Your Enterprise Environment Application Graph Database Cluster Neo4j Neo4j Neo4j Ad Hoc Analysis Bulk Analytic Infrastructure Graph Compute Engine EDW … Data Scientist End User Databases Relational NoSQL Hadoop
- 45. Next Steps Community. Training. Support.
- 46. There Are Lots of Ways to Easily Learn Neo4j

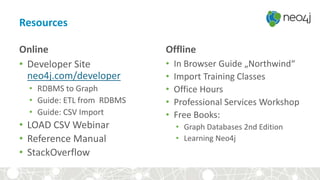

- 47. Resources Online • Developer Site neo4j.com/developer • RDBMS to Graph • Guide: ETL from RDBMS • Guide: CSV Import • LOAD CSV Webinar • Reference Manual • StackOverflow Offline • In Browser Guide „Northwind“ • Import Training Classes • Office Hours • Professional Services Workshop • Free Books: • Graph Databases 2nd Edition • Learning Neo4j
- 48. Register today at graphconnect.com Early Bird only $99
- 49. Relational to Graph Data Import Thank you ! Questions ? neo4j.com | @neo4j
