Graph databases
- 1. Graph Databases Introduction & Concepts Vinoth Kannan vinoth.kannan@widas.de 1

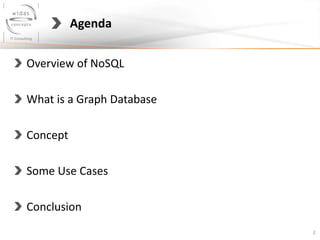

- 2. Agenda Overview of NoSQL What is a Graph Database Concept Some Use Cases Conclusion 2

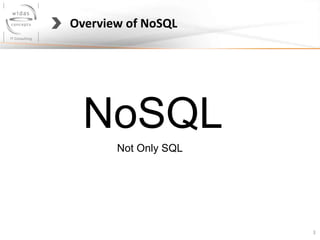

- 3. Overview of NoSQL NoSQL Not Only SQL 3

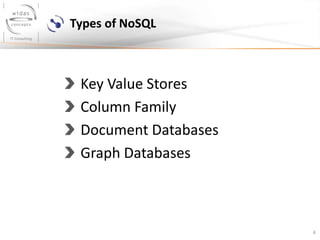

- 4. Types of NoSQL Key Value Stores Column Family Document Databases Graph Databases 4

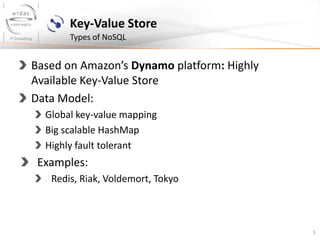

- 5. Key-Value Store Types of NoSQL Based on Amazon’s Dynamo platform: Highly Available Key-Value Store Data Model: Global key-value mapping Big scalable HashMap Highly fault tolerant Examples: Redis, Riak, Voldemort, Tokyo 5

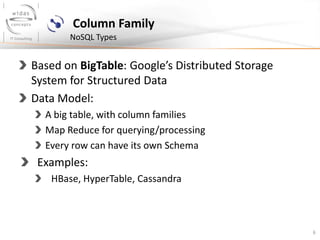

- 6. Column Family NoSQL Types Based on BigTable: Google’s Distributed Storage System for Structured Data Data Model: A big table, with column families Map Reduce for querying/processing Every row can have its own Schema Examples: HBase, HyperTable, Cassandra 6

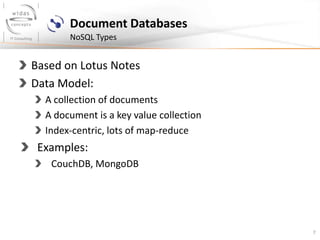

- 7. Document Databases NoSQL Types Based on Lotus Notes Data Model: A collection of documents A document is a key value collection Index-centric, lots of map-reduce Examples: CouchDB, MongoDB 7

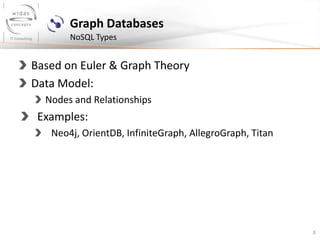

- 8. Graph Databases NoSQL Types Based on Euler & Graph Theory Data Model: Nodes and Relationships Examples: Neo4j, OrientDB, InfiniteGraph, AllegroGraph, Titan 8

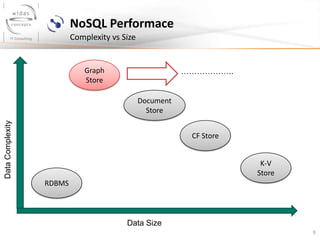

- 9. NoSQL Performace Complexity vs Size ……………….. Graph Store Data Complexity Document Store CF Store K-V Store RDBMS Data Size 9

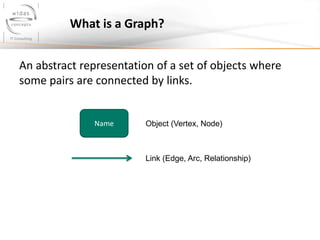

- 10. What is a Graph? An abstract representation of a set of objects where some pairs are connected by links. Name Object (Vertex, Node) Link (Edge, Arc, Relationship)

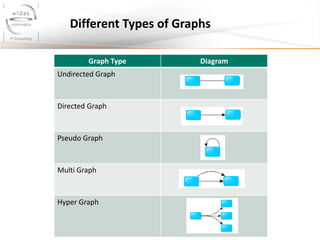

- 11. Different Types of Graphs Graph Type Undirected Graph Directed Graph Pseudo Graph Multi Graph Hyper Graph Diagram

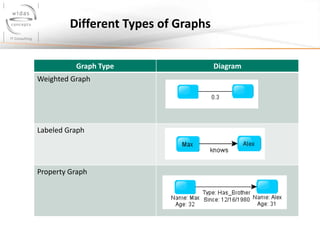

- 12. Different Types of Graphs Graph Type Weighted Graph Labeled Graph Property Graph Diagram

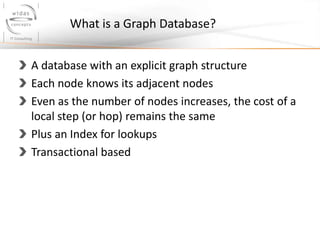

- 13. What is a Graph Database? A database with an explicit graph structure Each node knows its adjacent nodes Even as the number of nodes increases, the cost of a local step (or hop) remains the same Plus an Index for lookups Transactional based

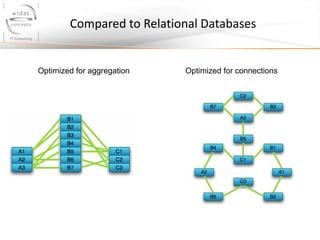

- 14. Compared to Relational Databases Optimized for aggregation Optimized for connections

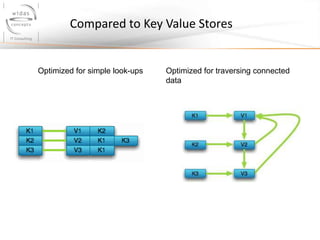

- 15. Compared to Key Value Stores Optimized for simple look-ups Optimized for traversing connected data

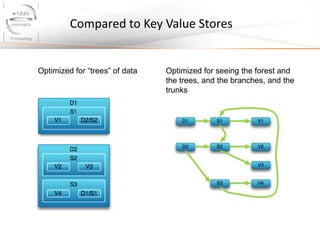

- 16. Compared to Key Value Stores Optimized for “trees” of data Optimized for seeing the forest and the trees, and the branches, and the trunks

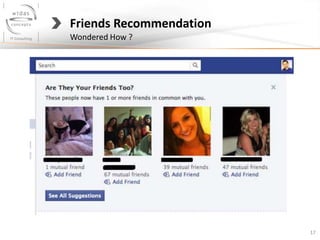

- 17. Friends Recommendation Wondered How ? 17

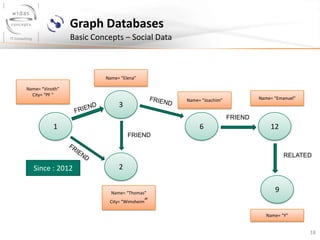

- 18. Graph Databases Basic Concepts – Social Data Name= “Elena” Name= “Vinoth” City= “PF “ Name= “Emanuel” Name= “Joachim” 3 FRIEND 1 6 12 FRIEND RELATED Since : 2012 2 Name= “Thomas” City= “Wimsheim 9 ” Name= “Y” 18

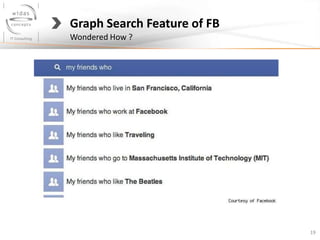

- 19. Graph Search Feature of FB Wondered How ? 19

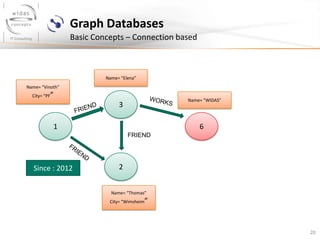

- 20. Graph Databases Basic Concepts – Connection based Name= “Elena” Name= “Vinoth” City= “PF ” Name= “WIDAS” 3 1 6 FRIEND Since : 2012 2 Name= “Thomas” City= “Wimsheim ” 20

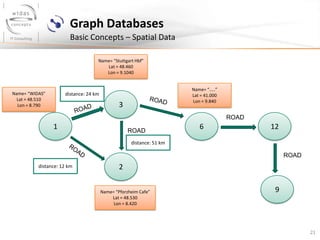

- 21. Graph Databases Basic Concepts – Spatial Data Name= “Stuttgart Hbf” Lat = 48.460 Lon = 9.1040 Name= “WIDAS” Lat = 48.510 Lon = 8.790 Name= “…..” Lat = 41.000 Lon = 9.840 distance: 24 km 3 ROAD 1 ROAD 6 12 distance: 51 km ROAD distance: 12 km 2 Name= “Pforzheim Cafe” Lat = 48.530 Lon = 8.420 9 21
- 22. Power of Graph Database Social Data + Spatial Data 22

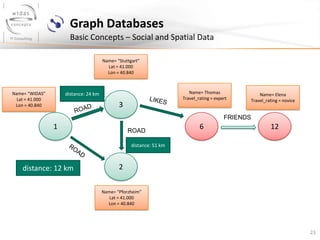

- 23. Graph Databases Basic Concepts – Social and Spatial Data Name= “Stuttgart” Lat = 41.000 Lon = 40.840 Name= “WIDAS” Lat = 41.000 Lon = 40.840 Name= Thomas Travel_rating = expert distance: 24 km 3 Name= Elena Travel_rating = novice FRIENDS 1 ROAD 6 12 distance: 51 km distance: 12 km 2 Name= “Pforzheim” Lat = 41.000 Lon = 40.840 23

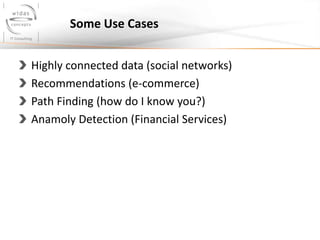

- 24. Some Use Cases Highly connected data (social networks) Recommendations (e-commerce) Path Finding (how do I know you?) Anamoly Detection (Financial Services)

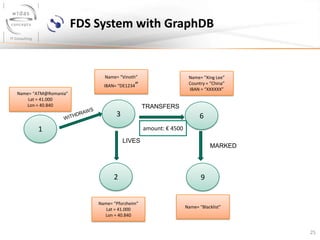

- 25. FDS System with GraphDB Name= “Vinoth” IBAN= “DE1234 Name= “Xing Lee” Country = “China” IBAN = “XXXXXX” ” Name= “ATM@Romania” Lat = 41.000 Lon = 40.840 TRANSFERS 3 6 1 amount: € 4500 LIVES 2 Name= “Pforzheim” Lat = 41.000 Lon = 40.840 MARKED 9 Name= “Blacklist” 25
- 26. Thank you!
Editor's Notes
- #12: An undirected graph is one in which edges have no orientation. The edge (a, b) is identical to the edge (b, a).A directed graph or digraph is an ordered pair D = (V, A)A pseudo graph is a graph with loopsA multi graph allows for multiple edges between nodesA hyper graph allows an edge to join more than two nodes
- #13: An undirected graph is one in which edges have no orientation. The edge (a, b) is identical to the edge (b, a).A directed graph or digraph is an ordered pair D = (V, A)A pseudo graph is a graph with loopsA multi graph allows for multiple edges between nodesA hyper graph allows an edge to join more than two nodes
