NoSQL databases pros and cons

Database NoSQL
Quando, vantaggi e svantaggi
Ciao
ciao
Vai a fare
ciao ciao
Dr. Fabio Fumarola

Scaling Up Databases
A question I’m often asked about Heroku is: “How do you scale
the SQL database?” There’s a lot of things I can say about using
caching, sharding, and other techniques to take load off the
database. But the actual answer is: we don’t. SQL databases are
fundamentally non-scalable, and there is no magical pixie dust
that we, or anyone, can sprinkle on them to suddenly make
them scale.
Adam Wiggins Heroku
Adam Wiggins, Heroku Patterson, David; Fox, Armando (2012-07-11). Engineering Long-Lasting
Software: An Agile Approach Using SaaS and Cloud Computing, Alpha Edition (Kindle Locations
1285-1288). Strawberry Canyon LLC. Kindle Edition.
2

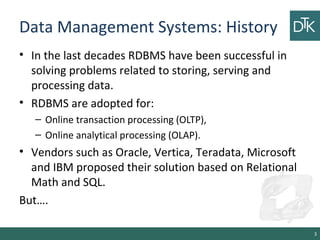

Data Management Systems: History
• In the last decades RDBMS have been successful in
solving problems related to storing, serving and
processing data.
• RDBMS are adopted for:
– Online transaction processing (OLTP),
– Online analytical processing (OLAP).
• Vendors such as Oracle, Vertica, Teradata, Microsoft
and IBM proposed their solution based on Relational
Math and SQL.
But….
3

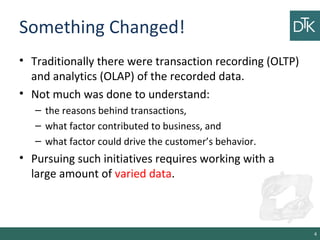

Something Changed!
• Traditionally there were transaction recording (OLTP)
and analytics (OLAP) of the recorded data.
• Not much was done to understand:
– the reasons behind transactions,
– what factor contributed to business, and
– what factor could drive the customer’s behavior.
• Pursuing such initiatives requires working with a
large amount of varied data.
4

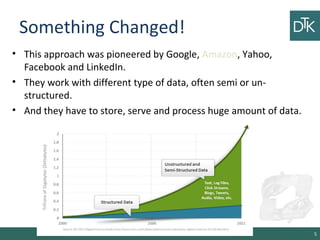

Something Changed!
• This approach was pioneered by Google, Amazon, Yahoo,
Facebook and LinkedIn.
• They work with different type of data, often semi or un-
structured.
• And they have to store, serve and process huge amount of data.
5

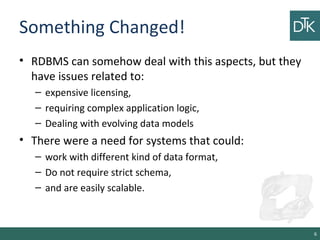

Something Changed!
• RDBMS can somehow deal with this aspects, but they
have issues related to:
– expensive licensing,
– requiring complex application logic,
– Dealing with evolving data models
• There were a need for systems that could:
– work with different kind of data format,
– Do not require strict schema,
– and are easily scalable.
6

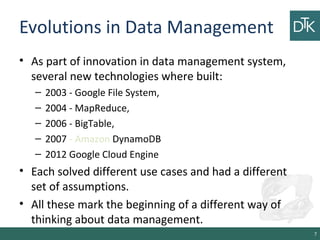

Evolutions in Data Management
• As part of innovation in data management system,
several new technologies where built:
– 2003 - Google File System,
– 2004 - MapReduce,
– 2006 - BigTable,
– 2007 - Amazon DynamoDB
– 2012 Google Cloud Engine
• Each solved different use cases and had a different
set of assumptions.
• All these mark the beginning of a different way of
thinking about data management.
7

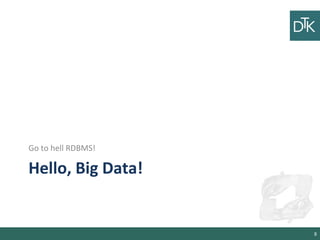

Hello, Big Data!
Go to hell RDBMS!
8

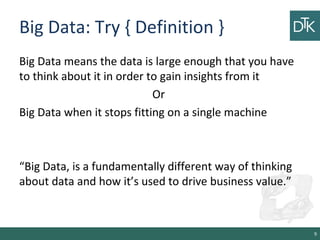

Big Data: Try { Definition }
Big Data means the data is large enough that you have
to think about it in order to gain insights from it
Or
Big Data when it stops fitting on a single machine
“Big Data, is a fundamentally different way of thinking
about data and how it’s used to drive business value.”
9

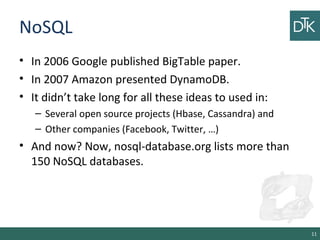

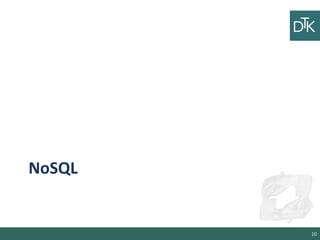

NoSQL
• In 2006 Google published BigTable paper.
• In 2007 Amazon presented DynamoDB.
• It didn’t take long for all these ideas to used in:
– Several open source projects (Hbase, Cassandra) and
– Other companies (Facebook, Twitter, …)
• And now? Now, nosql-database.org lists more than
150 NoSQL databases.
11

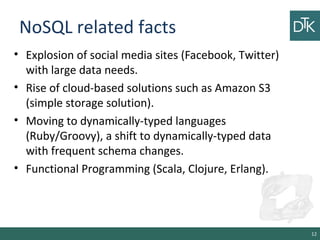

NoSQL related facts
• Explosion of social media sites (Facebook, Twitter)
with large data needs.
• Rise of cloud-based solutions such as Amazon S3
(simple storage solution).
• Moving to dynamically-typed languages
(Ruby/Groovy), a shift to dynamically-typed data
with frequent schema changes.
• Functional Programming (Scala, Clojure, Erlang).
12

NoSQL Categorization
• Key Value Store / Tuple Store
• Column-Oriented Store
• Document Store
• Graph Databases
• Multimodel Databases
• Object Databases
• Unresolved and Uncategorized
13

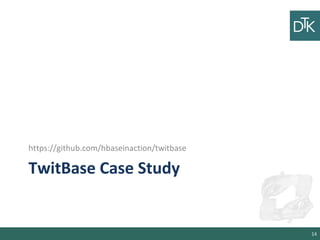

TwitBase Case Study
https://github.com/hbaseinaction/twitbase
14

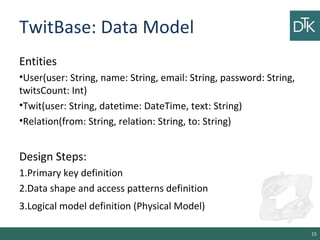

TwitBase: Data Model
Entities
•User(user: String, name: String, email: String, password: String,
twitsCount: Int)
•Twit(user: String, datetime: DateTime, text: String)
•Relation(from: String, relation: String, to: String)
Design Steps:
1.Primary key definition
2.Data shape and access patterns definition
3.Logical model definition (Physical Model)
15

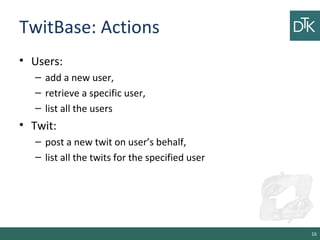

TwitBase: Actions
• Users:
– add a new user,
– retrieve a specific user,
– list all the users
• Twit:
– post a new twit on user’s behalf,
– list all the twits for the specified user
16

TwitBase: Actions
• Relation
– Add a new relationship where from follows to,
– list everyone user-Id follows,
– list everyone who follows user-Id
– count users' followers
• The considered relations are follows and followedBy
17

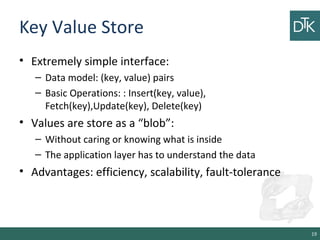

Key Value Store
• Extremely simple interface:
– Data model: (key, value) pairs
– Basic Operations: : Insert(key, value),
Fetch(key),Update(key), Delete(key)
• Values are store as a “blob”:
– Without caring or knowing what is inside
– The application layer has to understand the data
• Advantages: efficiency, scalability, fault-tolerance
19

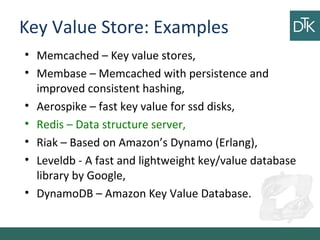

Key Value Store: Examples
• Memcached – Key value stores,
• Membase – Memcached with persistence and
improved consistent hashing,
• Aerospike – fast key value for ssd disks,
• Redis – Data structure server,
• Riak – Based on Amazon’s Dynamo (Erlang),
• Leveldb - A fast and lightweight key/value database
library by Google,
• DynamoDB – Amazon Key Value Database.

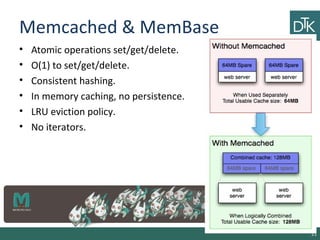

Memcached & MemBase
• Atomic operations set/get/delete.
• O(1) to set/get/delete.
• Consistent hashing.
• In memory caching, no persistence.
• LRU eviction policy.
• No iterators.
21

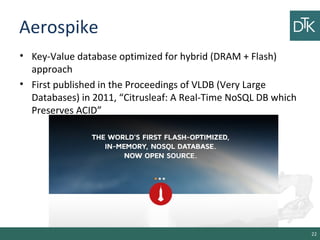

Aerospike
• Key-Value database optimized for hybrid (DRAM + Flash)
approach
• First published in the Proceedings of VLDB (Very Large
Databases) in 2011, “Citrusleaf: A Real-Time NoSQL DB which
Preserves ACID”
22

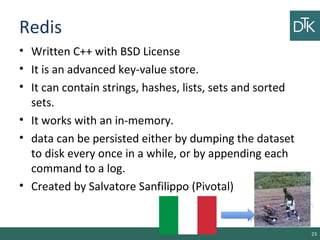

Redis
• Written C++ with BSD License
• It is an advanced key-value store.
• It can contain strings, hashes, lists, sets and sorted
sets.
• It works with an in-memory.
• data can be persisted either by dumping the dataset
to disk every once in a while, or by appending each
command to a log.
• Created by Salvatore Sanfilippo (Pivotal)
23

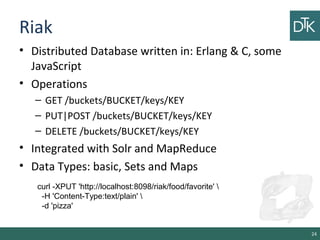

Riak
• Distributed Database written in: Erlang & C, some
JavaScript
• Operations
– GET /buckets/BUCKET/keys/KEY
– PUT|POST /buckets/BUCKET/keys/KEY
– DELETE /buckets/BUCKET/keys/KEY
• Integrated with Solr and MapReduce
• Data Types: basic, Sets and Maps
24
curl -XPUT 'http://localhost:8098/riak/food/favorite'
-H 'Content-Type:text/plain'
-d 'pizza'

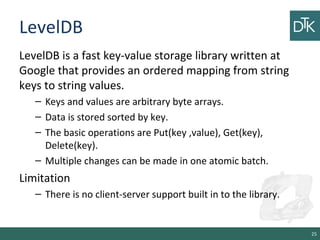

LevelDB
LevelDB is a fast key-value storage library written at
Google that provides an ordered mapping from string
keys to string values.
– Keys and values are arbitrary byte arrays.
– Data is stored sorted by key.
– The basic operations are Put(key ,value), Get(key),
Delete(key).
– Multiple changes can be made in one atomic batch.
Limitation
– There is no client-server support built in to the library.
25

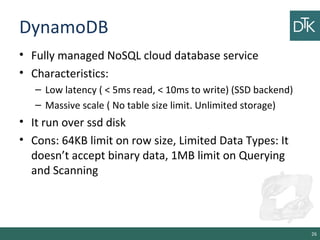

DynamoDB
• Fully managed NoSQL cloud database service
• Characteristics:
– Low latency ( < 5ms read, < 10ms to write) (SSD backend)
– Massive scale ( No table size limit. Unlimited storage)
• It run over ssd disk
• Cons: 64KB limit on row size, Limited Data Types: It
doesn’t accept binary data, 1MB limit on Querying
and Scanning
26

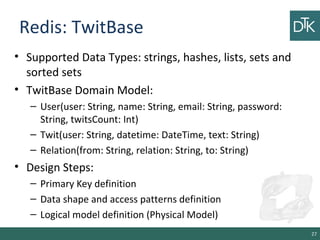

Redis: TwitBase
• Supported Data Types: strings, hashes, lists, sets and
sorted sets
• TwitBase Domain Model:
– User(user: String, name: String, email: String, password:
String, twitsCount: Int)
– Twit(user: String, datetime: DateTime, text: String)
– Relation(from: String, relation: String, to: String)
• Design Steps:
– Primary Key definition
– Data shape and access patterns definition
– Logical model definition (Physical Model)
27

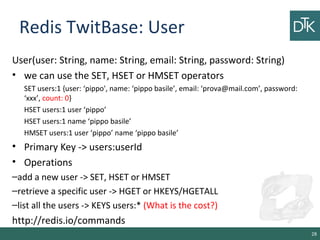

Redis TwitBase: User
User(user: String, name: String, email: String, password: String)
• we can use the SET, HSET or HMSET operators
SET users:1 {user: ‘pippo', name: ‘pippo basile’, email: ‘prova@mail.com’, password:
‘xxx’, count: 0}
HSET users:1 user ‘pippo’
HSET users:1 name ‘pippo basile’
HMSET users:1 user ‘pippo’ name ‘pippo basile’
• Primary Key -> users:userId
• Operations
–add a new user -> SET, HSET or HMSET
–retrieve a specific user -> HGET or HKEYS/HGETALL
–list all the users -> KEYS users:* (What is the cost?)
http://redis.io/commands
28

Redis TwitBase: Twit
Twit(user: String, datetime: DateTime, text: String)
• we can use the SET or HSET operators
SET twit:pippo:1405547914879 {user: ‘pippo', datetime: 1405547914879, email: ‘hello’}
HSET twit:pippo:1405547914879 user ‘pippo’
HSET twit:pippo:1405547914879 datetime 1405547914879
HMSET twit:pippo:1405547914879 user ‘pippo’ datetime 1405547914879 …
• Primary Key-> twit:userId:timestamp (???)
• Operations
–post a new twit on user’s behalf -> SET, HSET or HMSET
–list all the twits for the specified user -> KEYS
29

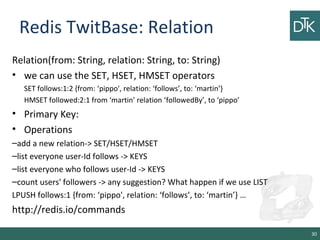

Redis TwitBase: Relation
Relation(from: String, relation: String, to: String)
• we can use the SET, HSET, HMSET operators
SET follows:1:2 {from: ‘pippo', relation: ‘follows’, to: ‘martin’}
HMSET followed:2:1 from ‘martin’ relation ‘followedBy’, to ‘pippo’
• Primary Key:
• Operations
–add a new relation-> SET/HSET/HMSET
–list everyone user-Id follows -> KEYS
–list everyone who follows user-Id -> KEYS
–count users' followers -> any suggestion? What happen if we use LIST
LPUSH follows:1 {from: ‘pippo', relation: ‘follows’, to: ‘martin’} …
30

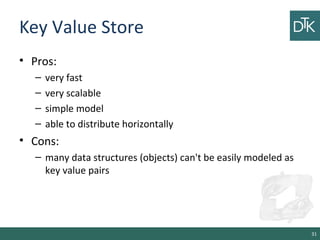

Key Value Store
• Pros:
– very fast
– very scalable
– simple model
– able to distribute horizontally
• Cons:
– many data structures (objects) can't be easily modeled as
key value pairs
31

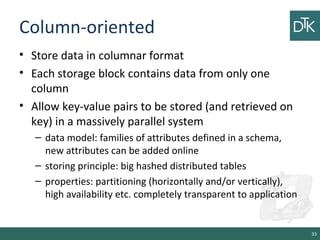

Column-oriented
• Store data in columnar format
• Each storage block contains data from only one
column
• Allow key-value pairs to be stored (and retrieved on
key) in a massively parallel system
– data model: families of attributes defined in a schema,
new attributes can be added online
– storing principle: big hashed distributed tables
– properties: partitioning (horizontally and/or vertically),
high availability etc. completely transparent to application
33

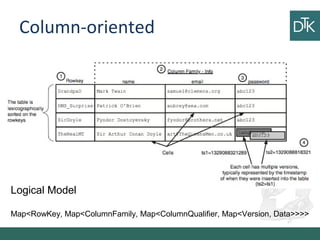

Column-oriented
Logical Model
Map<RowKey, Map<ColumnFamily, Map<ColumnQualifier, Map<Version, Data>>>>

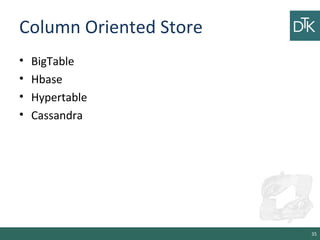

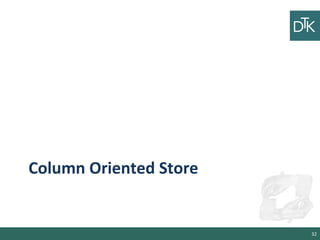

Column Oriented Store
• BigTable
• Hbase
• Hypertable
• Cassandra
35

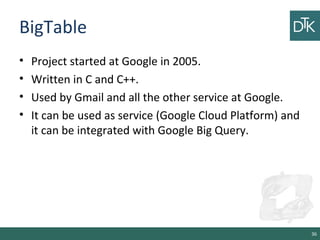

BigTable
• Project started at Google in 2005.
• Written in C and C++.
• Used by Gmail and all the other service at Google.
• It can be used as service (Google Cloud Platform) and
it can be integrated with Google Big Query.
36

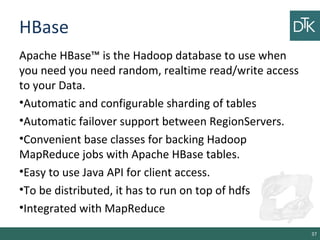

HBase
Apache HBase™ is the Hadoop database to use when
you need you need random, realtime read/write access
to your Data.
•Automatic and configurable sharding of tables
•Automatic failover support between RegionServers.
•Convenient base classes for backing Hadoop
MapReduce jobs with Apache HBase tables.
•Easy to use Java API for client access.
•To be distributed, it has to run on top of hdfs
•Integrated with MapReduce
37

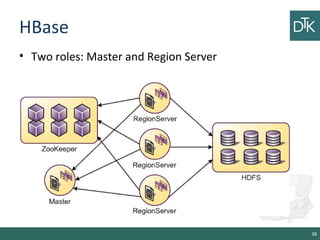

HBase
• Two roles: Master and Region Server
38

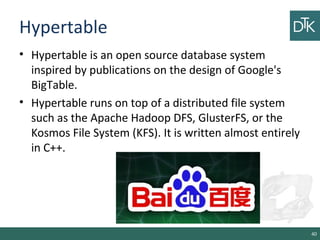

Hypertable
• Hypertable is an open source database system
inspired by publications on the design of Google's
BigTable.
• Hypertable runs on top of a distributed file system
such as the Apache Hadoop DFS, GlusterFS, or the
Kosmos File System (KFS). It is written almost entirely
in C++.
40

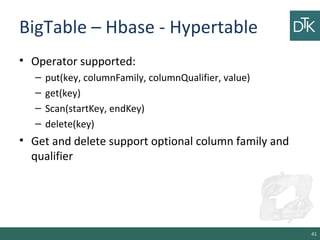

BigTable – Hbase - Hypertable
• Operator supported:
– put(key, columnFamily, columnQualifier, value)
– get(key)
– Scan(startKey, endKey)
– delete(key)
• Get and delete support optional column family and
qualifier
41

Cassandra
• Big-Table extension:
– All nodes are similar.
– Can be used as a distributed hash-table, with an "SQL-like"
language, CQL (but no JOIN!)
• Data can have expiration (set on INSERT)
• Map/reduce possible with Apache Hadoop
• Rich Data Model (columns, composites, counters,
secondary indexes, map, set, list, counters)
42

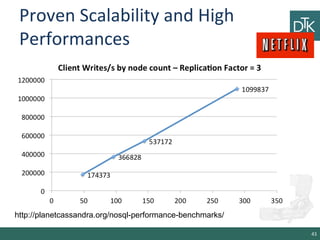

Proven Scalability and High
Performances
43
http://planetcassandra.org/nosql-performance-benchmarks/

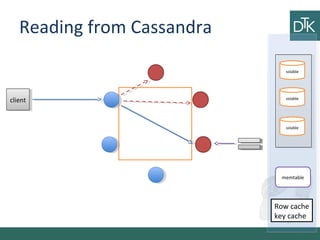

Reading from Cassandra
clientclient
memtable
sstable
sstable
sstable
Row cache
key cache

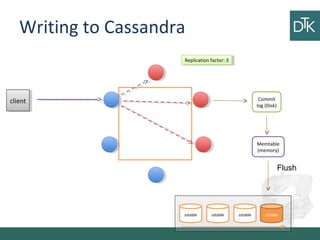

Writing to Cassandra
clientclient Commit
log (Disk)
Memtable
(memory)
sstable
Flush
Replication factor: 3Replication factor: 3
sstable sstablesstable

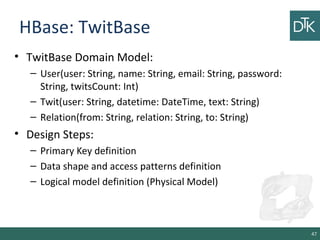

HBase: TwitBase
• Design Steps:
47

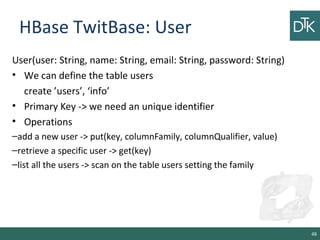

HBase TwitBase: User
• We can define the table users
create ’users’, ‘info’
• Primary Key -> we need an unique identifier
• Operations
–add a new user -> put(key, columnFamily, columnQualifier, value)
–retrieve a specific user -> get(key)
–list all the users -> scan on the table users setting the family
48

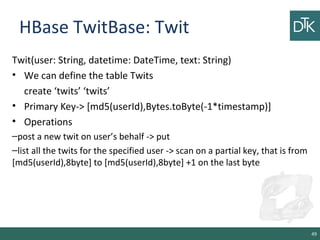

HBase TwitBase: Twit
• We can define the table Twits
create ‘twits’ ‘twits’
• Primary Key-> [md5(userId),Bytes.toByte(-1*timestamp)]
• Operations
–post a new twit on user’s behalf -> put
–list all the twits for the specified user -> scan on a partial key, that is from
[md5(userId),8byte] to [md5(userId),8byte] +1 on the last byte
49

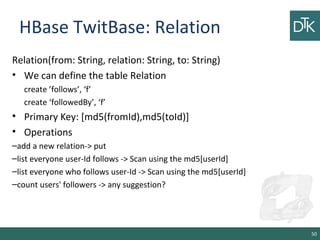

HBase TwitBase: Relation
• We can define the table Relation
create ’follows’, ‘f’
create ‘followedBy’, ‘f’
• Primary Key: [md5(fromId),md5(toId)]
• Operations
–add a new relation-> put
–list everyone user-Id follows -> Scan using the md5[userId]
–list everyone who follows user-Id -> Scan using the md5[userId]
–count users' followers -> any suggestion?
50

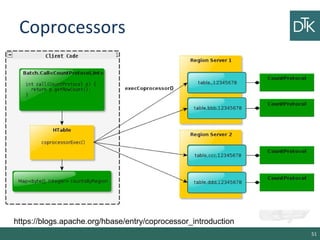

Coprocessors
51
https://blogs.apache.org/hbase/entry/coprocessor_introduction

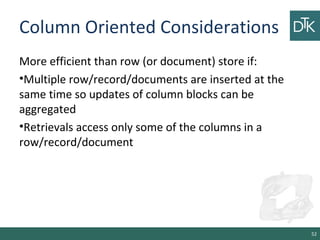

Column Oriented Considerations
More efficient than row (or document) store if:
•Multiple row/record/documents are inserted at the
same time so updates of column blocks can be
aggregated
•Retrievals access only some of the columns in a
row/record/document
52

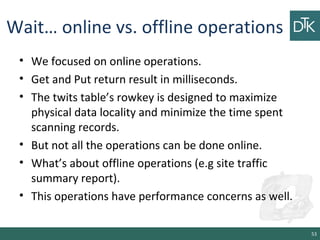

Wait… online vs. offline operations
• We focused on online operations.
• Get and Put return result in milliseconds.
• The twits table’s rowkey is designed to maximize
physical data locality and minimize the time spent
scanning records.
• But not all the operations can be done online.
• What’s about offline operations (e.g site traffic
summary report).
• This operations have performance concerns as well.
53

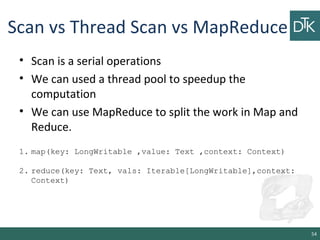

Scan vs Thread Scan vs MapReduce
• Scan is a serial operations
• We can used a thread pool to speedup the
computation
• We can use MapReduce to split the work in Map and
Reduce.
54
1. map(key: LongWritable ,value: Text ,context: Context)
2. reduce(key: Text, vals: Iterable[LongWritable],context:
Context)

HBase MapReduce integration
TableMapReduceUtil.initTableMapperJob
( "twits", scan, Map.class,
ImmutableBytesWritable.class,
Result.class,
job);
55

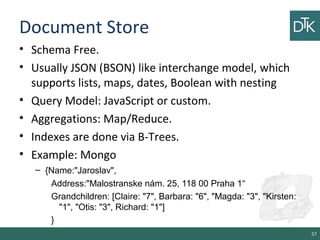

Document Store
• Schema Free.
• Usually JSON (BSON) like interchange model, which
supports lists, maps, dates, Boolean with nesting
• Query Model: JavaScript or custom.
• Aggregations: Map/Reduce.
• Indexes are done via B-Trees.
• Example: Mongo
– {Name:"Jaroslav",
Address:"Malostranske nám. 25, 118 00 Praha 1“
Grandchildren: [Claire: "7", Barbara: "6", "Magda: "3", "Kirsten:
"1", "Otis: "3", Richard: "1"]
}
57

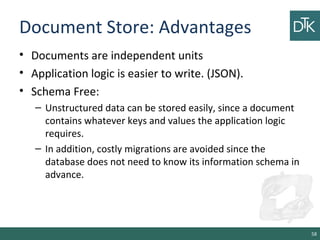

Document Store: Advantages
• Documents are independent units
• Application logic is easier to write. (JSON).
• Schema Free:
– Unstructured data can be stored easily, since a document
contains whatever keys and values the application logic
requires.
– In addition, costly migrations are avoided since the
database does not need to know its information schema in
advance.
58

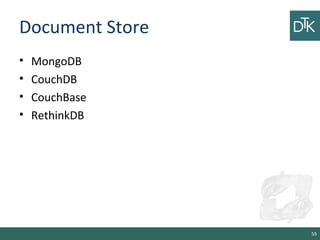

Document Store
• MongoDB
• CouchDB
• CouchBase
• RethinkDB
59

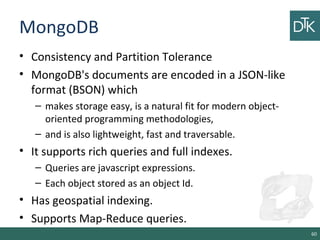

MongoDB
• Consistency and Partition Tolerance
• MongoDB's documents are encoded in a JSON-like
format (BSON) which
– makes storage easy, is a natural fit for modern object-
oriented programming methodologies,
– and is also lightweight, fast and traversable.
• It supports rich queries and full indexes.
– Queries are javascript expressions.
– Each object stored as an object Id.
• Has geospatial indexing.
• Supports Map-Reduce queries.
60

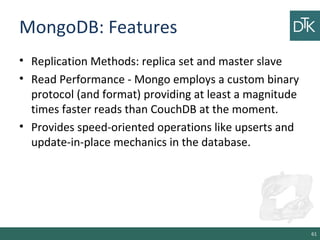

MongoDB: Features
• Replication Methods: replica set and master slave
• Read Performance - Mongo employs a custom binary
protocol (and format) providing at least a magnitude
times faster reads than CouchDB at the moment.
• Provides speed-oriented operations like upserts and
update-in-place mechanics in the database.
61

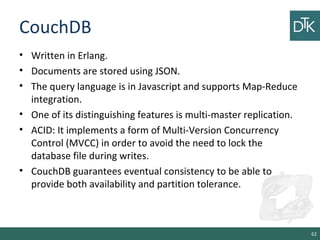

CouchDB
• Written in Erlang.
• Documents are stored using JSON.
• The query language is in Javascript and supports Map-Reduce
integration.
• One of its distinguishing features is multi-master replication.
• ACID: It implements a form of Multi-Version Concurrency
Control (MVCC) in order to avoid the need to lock the
database file during writes.
• CouchDB guarantees eventual consistency to be able to
provide both availability and partition tolerance.
62

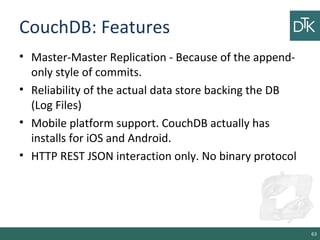

CouchDB: Features
• Master-Master Replication - Because of the append-
only style of commits.
• Reliability of the actual data store backing the DB
(Log Files)
• Mobile platform support. CouchDB actually has
installs for iOS and Android.
• HTTP REST JSON interaction only. No binary protocol
63

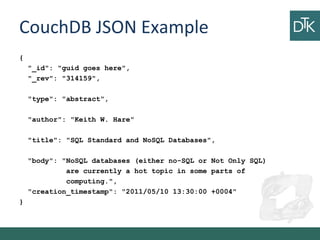

CouchDB JSON Example
{
"_id": "guid goes here",
"_rev": "314159",
"type": "abstract",
"author": "Keith W. Hare"
"title": "SQL Standard and NoSQL Databases",
"body": "NoSQL databases (either no-SQL or Not Only SQL)
are currently a hot topic in some parts of
computing.",
"creation_timestamp": "2011/05/10 13:30:00 +0004"
}

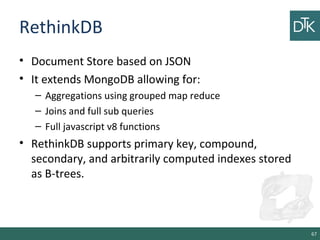

RethinkDB
• Document Store based on JSON
• It extends MongoDB allowing for:
– Aggregations using grouped map reduce
– Joins and full sub queries
– Full javascript v8 functions
• RethinkDB supports primary key, compound,
secondary, and arbitrarily computed indexes stored
as B-trees.
67

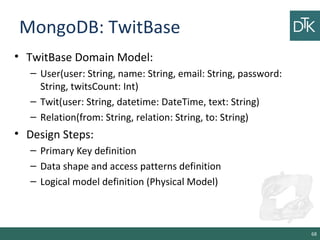

MongoDB: TwitBase
• Design Steps:
68

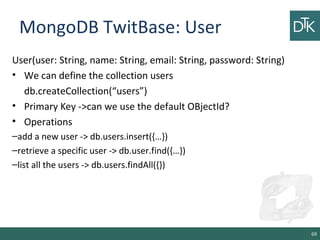

MongoDB TwitBase: User
• We can define the collection users
db.createCollection(“users”)
• Primary Key ->can we use the default OBjectId?
• Operations
–add a new user -> db.users.insert({…})
–retrieve a specific user -> db.user.find({…})
–list all the users -> db.users.findAll({})
69

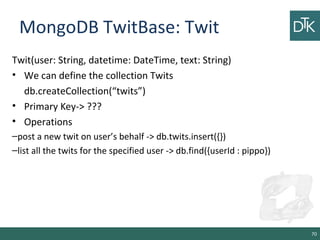

MongoDB TwitBase: Twit
• We can define the collection Twits
db.createCollection(“twits”)
• Primary Key-> ???
• Operations
–post a new twit on user’s behalf -> db.twits.insert({})
–list all the twits for the specified user -> db.find({userId : pippo})
70

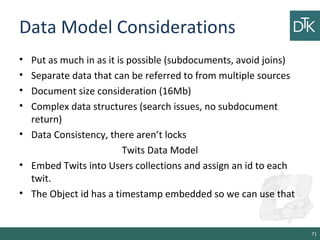

Data Model Considerations
• Put as much in as it is possible (subdocuments, avoid joins)
• Separate data that can be referred to from multiple sources
• Document size consideration (16Mb)
• Complex data structures (search issues, no subdocument
return)
• Data Consistency, there aren’t locks
Twits Data Model
• Embed Twits into Users collections and assign an id to each
twit.
• The Object id has a timestamp embedded so we can use that
71

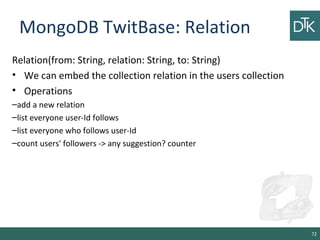

MongoDB TwitBase: Relation
• We can embed the collection relation in the users collection
• Operations
–add a new relation
–list everyone user-Id follows
–list everyone who follows user-Id
–count users' followers -> any suggestion? counter
72

Graph Databases
• They are significantly different from the other three classes of
NoSQL databases.
• Graph Databases are based on the mathematical concept of
graph theory.
• They fit well in several real world applications (twits,
permission models)
• Are based on the concepts of Vertex and Edges
• A Graph DB can be labeled, directed, attributed multi-graph
• Relational DBs can model graphs, but an edge does not
require a join which is expensive.
74

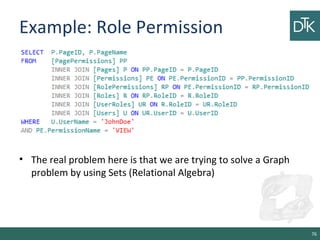

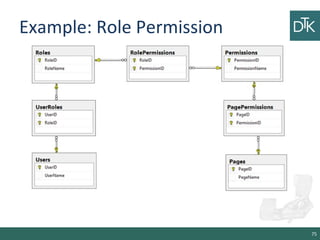

Example: Role Permission
• The real problem here is that we are trying to solve a Graph
problem by using Sets (Relational Algebra)
76

Graph Store
• Neo4j
• Titan
• OrientDB
77

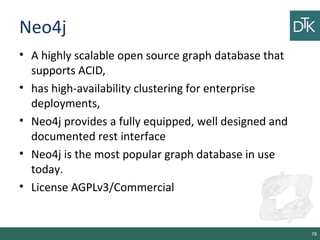

Neo4j
• A highly scalable open source graph database that
supports ACID,
• has high-availability clustering for enterprise
deployments,
• Neo4j provides a fully equipped, well designed and
documented rest interface
• Neo4j is the most popular graph database in use
today.
• License AGPLv3/Commercial
78

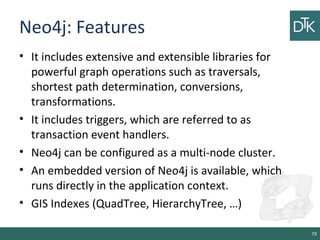

Neo4j: Features
• It includes extensive and extensible libraries for
powerful graph operations such as traversals,
shortest path determination, conversions,
transformations.
• It includes triggers, which are referred to as
transaction event handlers.
• Neo4j can be configured as a multi-node cluster.
• An embedded version of Neo4j is available, which
runs directly in the application context.
• GIS Indexes (QuadTree, HierarchyTree, …)
79

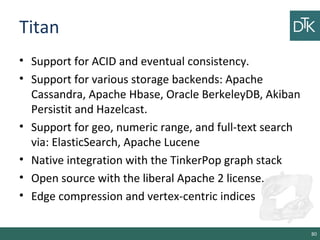

Titan
• Support for ACID and eventual consistency.
• Support for various storage backends: Apache
Cassandra, Apache Hbase, Oracle BerkeleyDB, Akiban
Persistit and Hazelcast.
• Support for geo, numeric range, and full-text search
via: ElasticSearch, Apache Lucene
• Native integration with the TinkerPop graph stack
• Open source with the liberal Apache 2 license.
• Edge compression and vertex-centric indices
80

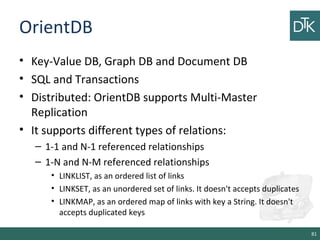

OrientDB
• Key-Value DB, Graph DB and Document DB
• SQL and Transactions
• Distributed: OrientDB supports Multi-Master
Replication
• It supports different types of relations:
– 1-1 and N-1 referenced relationships
– 1-N and N-M referenced relationships
• LINKLIST, as an ordered list of links
• LINKSET, as an unordered set of links. It doesn't accepts duplicates
• LINKMAP, as an ordered map of links with key a String. It doesn't
accepts duplicated keys
81

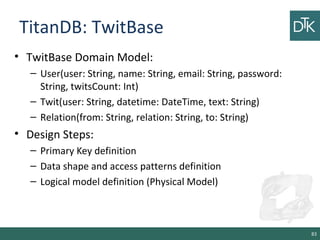

TitanDB: TwitBase
• Design Steps:
83

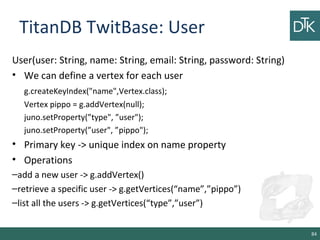

TitanDB TwitBase: User
• We can define a vertex for each user
g.createKeyIndex("name",Vertex.class);
Vertex pippo = g.addVertex(null);
juno.setProperty(”type", ”user");
juno.setProperty(”user", ”pippo");
• Primary key -> unique index on name property
• Operations
–add a new user -> g.addVertex()
–retrieve a specific user -> g.getVertices(“name”,”pippo”)
–list all the users -> g.getVertices(“type”,”user”)
84

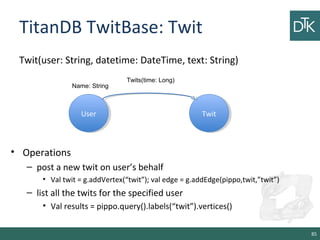

TitanDB TwitBase: Twit
85
UserUser TwitTwit
Twits(time: Long)
Name: String
• Operations
– post a new twit on user’s behalf
• Val twit = g.addVertex(“twit”); val edge = g.addEdge(pippo,twit,”twit”)
– list all the twits for the specified user
• Val results = pippo.query().labels(“twit”).vertices()

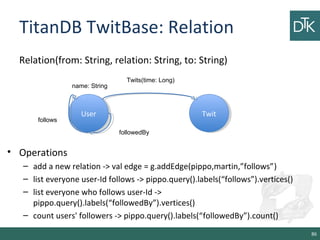

TitanDB TwitBase: Relation
86
UserUser TwitTwit
Twits(time: Long)
name: String
• Operations
– add a new relation -> val edge = g.addEdge(pippo,martin,”follows”)
– list everyone user-Id follows -> pippo.query().labels(“follows”).vertices()
– list everyone who follows user-Id ->
pippo.query().labels(“followedBy”).vertices()
– count users' followers -> pippo.query().labels(“followedBy”).count()
follows
followedBy

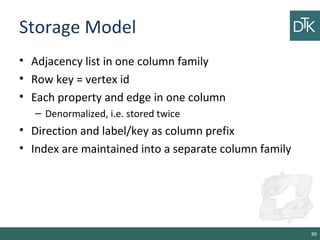

Storage Model
• Adjacency list in one column family
• Row key = vertex id
• Each property and edge in one column
– Denormalized, i.e. stored twice
• Direction and label/key as column prefix
• Index are maintained into a separate column family
88

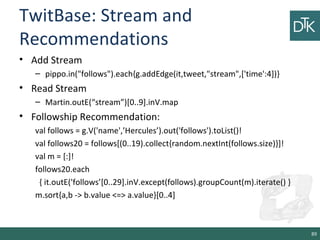

TwitBase: Stream and
Recommendations
• Add Stream
– pippo.in("follows").each{g.addEdge(it,tweet,"stream",['time':4])}
• Read Stream
– Martin.outE(“stream”)[0..9].inV.map
• Followship Recommendation:
val follows = g.V('name',’Hercules’).out('follows').toList()!
val follows20 = follows[(0..19).collect{random.nextInt(follows.size)}]!
val m = [:]!
follows20.each
{ it.outE('follows’[0..29].inV.except(follows).groupCount(m).iterate() }
m.sort{a,b -> b.value <=> a.value}[0..4]
89

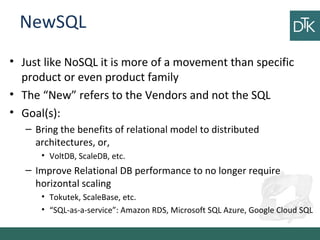

NewSQL
• Just like NoSQL it is more of a movement than specific
product or even product family
• The “New” refers to the Vendors and not the SQL
• Goal(s):
– Bring the benefits of relational model to distributed
architectures, or,
• VoltDB, ScaleDB, etc.
– Improve Relational DB performance to no longer require
horizontal scaling
• Tokutek, ScaleBase, etc.
• “SQL-as-a-service”: Amazon RDS, Microsoft SQL Azure, Google Cloud SQL

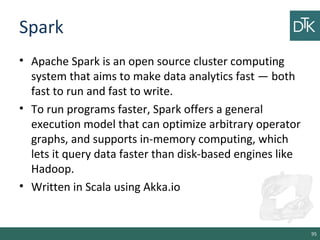

Spark
• Apache Spark is an open source cluster computing
system that aims to make data analytics fast — both
fast to run and fast to write.
• To run programs faster, Spark offers a general
execution model that can optimize arbitrary operator
graphs, and supports in-memory computing, which
lets it query data faster than disk-based engines like
Hadoop.
• Written in Scala using Akka.io
95

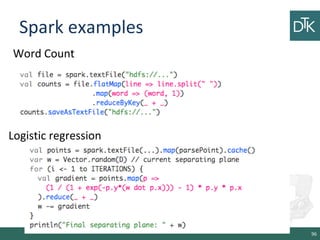

Spark examples
Word Count
96
Logistic regression

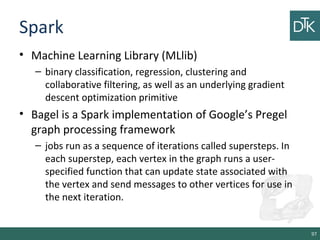

Spark
• Machine Learning Library (MLlib)
– binary classification, regression, clustering and
collaborative filtering, as well as an underlying gradient
descent optimization primitive
• Bagel is a Spark implementation of Google’s Pregel
graph processing framework
– jobs run as a sequence of iterations called supersteps. In
each superstep, each vertex in the graph runs a user-
specified function that can update state associated with
the vertex and send messages to other vertices for use in
the next iteration.
97

Shark
• Shark is a large-scale data warehouse system for
Spark designed to be compatible with Apache Hive. It
can execute Hive QL queries up to 100 times faster
than Hive without any modification to the existing
data or queries.
– REATE TABLE logs_last_month_cached AS SELECT * FROM
logs WHERE time > date(...);
– SELECT page, count(*) c FROM logs_last_month_cached
GROUP BY page ORDER BY c DESC LIMIT 10;
98

NoSQL: How to
But before CAP Theorem
101

Brewer’s CAP Theorem
A distributed system can support only two of the
following characteristics:
•Consistency (all copies have same value)
•Availability (system can run even if parts have failed)
•Partition Tolerance (network can break into two or
more parts, each with active systems that can not
influence other parts)
102

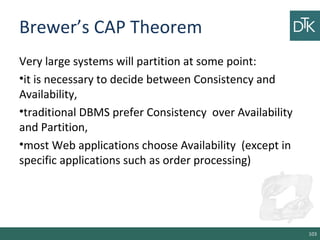

Brewer’s CAP Theorem
Very large systems will partition at some point:
•it is necessary to decide between Consistency and
Availability,
•traditional DBMS prefer Consistency over Availability
and Partition,
•most Web applications choose Availability (except in
specific applications such as order processing)
103

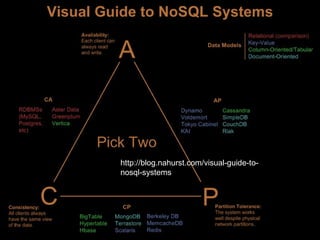

104
http://blog.nahurst.com/visual-guide-to-
nosql-systems

NoSQL databases pros and cons

More Related Content

What's hot (20)

Viewers also liked (9)

Similar to NoSQL databases pros and cons (20)

More from Fabio Fumarola (20)

Recently uploaded (20)

NoSQL databases pros and cons

Editor's Notes
