Couchbase - Yet Another Introduction

Kelum Senanayake
Consistent. Elastic. Scalable. Always available. Data storage.

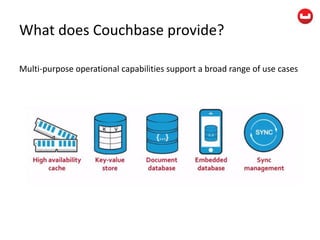

What does Couchbase provide?
Multi-purpose operational capabilities support a broad range of use cases

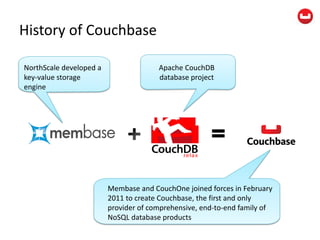

History of Couchbase
NorthScale developed a
key-value storage
engine
Apache CouchDB
database project
Membase and CouchOne joined forces in February
2011 to create Couchbase, the first and only
provider of comprehensive, end-to-end family of
NoSQL database products

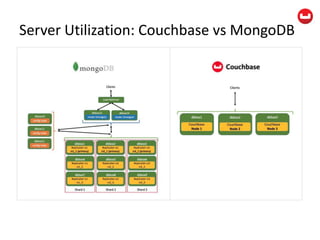

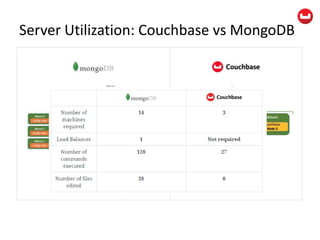

Server Utilization: Couchbase vs MongoDB

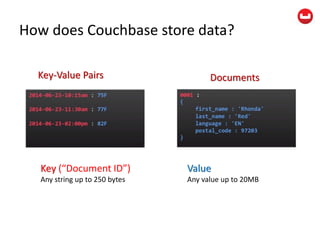

How does Couchbase store data?
Key-Value Pairs Documents
Key (“Document ID”)
Any string up to 250 bytes
Value
Any value up to 20MB

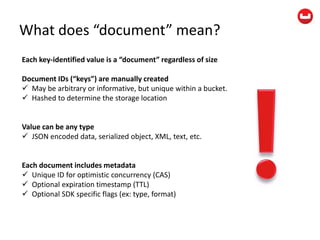

What does “document” mean?
Each key-identified value is a “document” regardless of size
Document IDs (“keys”) are manually created
 May be arbitrary or informative, but unique within a bucket.
 Hashed to determine the storage location
Value can be any type
 JSON encoded data, serialized object, XML, text, etc.
Each document includes metadata
 Unique ID for optimistic concurrency (CAS)
 Optional expiration timestamp (TTL)
 Optional SDK specific flags (ex: type, format)

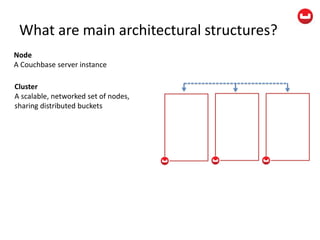

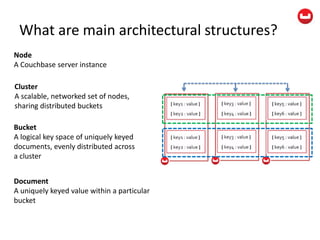

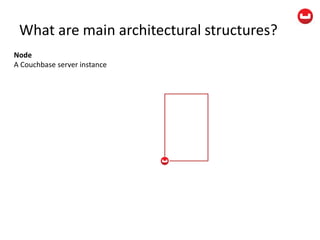

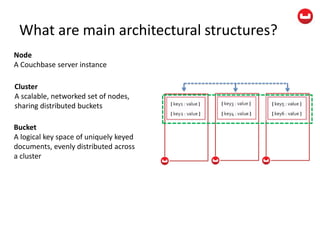

What are main architectural structures?

Node
A Couchbase server instance

Node
Cluster
A scalable, networked set of nodes,
sharing distributed buckets

Node
Cluster
Bucket
A logical key space of uniquely keyed
documents, evenly distributed across
a cluster

Document
A uniquely keyed value within a particular
bucket
Node
Cluster
Bucket
A logical key space of uniquely keyed
documents, evenly distributed across
a cluster

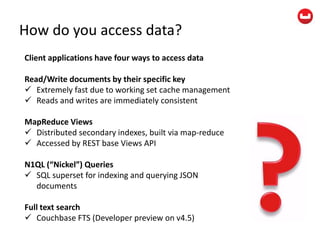

How do you access data?
Client applications have four ways to access data
Read/Write documents by their specific key
 Extremely fast due to working set cache management
 Reads and writes are immediately consistent
MapReduce Views
 Distributed secondary indexes, built via map-reduce
 Accessed by REST base Views API
N1QL (“Nickel”) Queries
 SQL superset for indexing and querying JSON
documents
Full text search
 Couchbase FTS (Developer preview on v4.5)

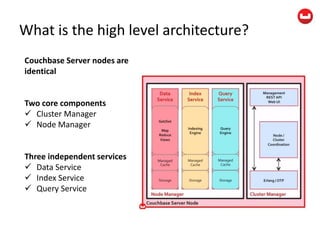

What is the high level architecture?
Couchbase Server nodes are
identical
Two core components
 Cluster Manager
 Node Manager
Three independent services
 Data Service
 Index Service
 Query Service

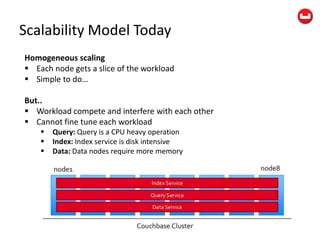

Scalability Model Today
Homogeneous scaling
 Each node gets a slice of the workload
 Simple to do…
But..
 Workload compete and interfere with each other
 Cannot fine tune each workload
 Query: Query is a CPU heavy operation
 Index: Index service is disk intensive
 Data: Data nodes require more memory

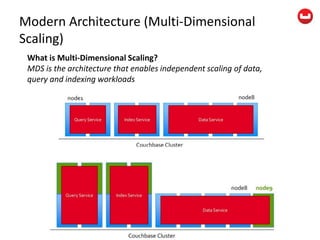

Modern Architecture (Multi-Dimensional
Scaling)

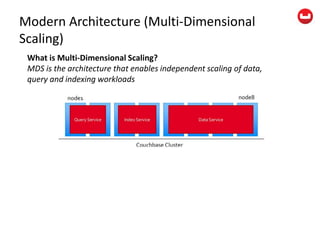

Modern Architecture (Multi-Dimensional
Scaling)
What is Multi-Dimensional Scaling?
MDS is the architecture that enables independent scaling of data,
query and indexing workloads

Application Server / Couchbase SDK
Data Service

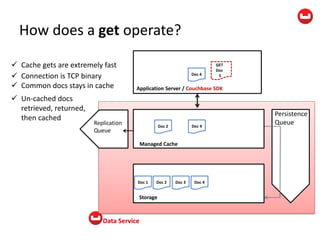

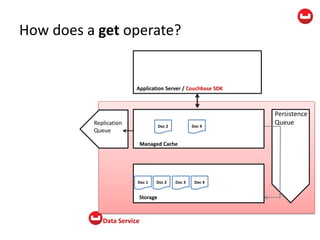

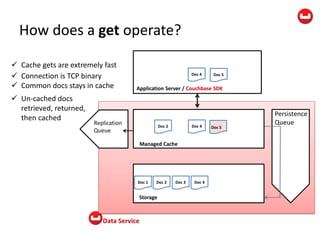

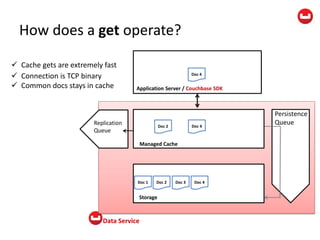

How does a get operate?
Doc 1 Doc 2 Doc 6Doc 5Doc 4Doc 3 Doc 7
Doc 2 Doc 4 Doc 6
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 4Doc 3Doc 2Doc 1
Doc 4Doc 2

Data Service
Doc 2 Doc 4 Doc 6
Persistence
QueueReplication
Queue
Managed Cache
Storage

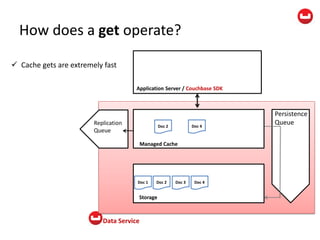

 Cache gets are extremely fast
Doc 4Doc 2

Data Service
Doc 2 Doc 4 Doc 6
Persistence
QueueReplication
Queue
Managed Cache
Storage
 Connection is TCP binary
 Common docs stays in cache
Doc 4
Doc 4Doc 2

Data Service
Doc 2 Doc 4 Doc 6
Persistence
QueueReplication
Queue
Managed Cache
Storage
GET
Doc
5
 Un-cached docs
retrieved, returned,
then cached
Doc 4
Doc 4Doc 2

Data Service
Doc 2 Doc 4 Doc 6
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 5
Doc 5
 Un-cached docs
retrieved, returned,
then cached
Doc 4
Doc 4Doc 2

How is the cache managed?
Data Service
Managed Cache
Doc 4 Doc 6
NRU (Not Recently Used) score is maintained by each cache item
Nodes configurable for value-only or full ejection
Value-only
 Max lookup speed
 Max memory use and
slow warm-up time
Full-ejection
 Slower lookup speed
 Lower memory use
Best choice varies by use
case

Data Service

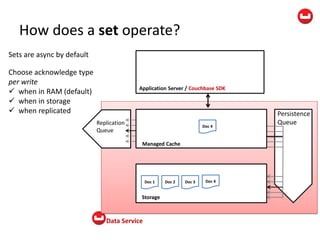

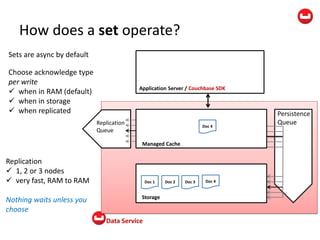

How does a set operate?
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 1 Doc 2 Doc 3
Sets are async by default

Data Service
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 1 Doc 2 Doc 3
Doc 4
Doc 4

Data Service
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 1 Doc 2 Doc 3
Doc 4
Doc 4
Choose acknowledge type
per write
 when in RAM (default)
 when in storage
 when replicated

Data Service
Persistence
QueueReplication
Queue
Managed Cache
Storage
Doc 1 Doc 2 Doc 3
Doc 4
Doc 4
Choose acknowledge type
per write
 when in RAM (default)
 when in storage
 when replicated
Replication
 1, 2 or 3 nodes
 very fast, RAM to RAM
Nothing waits unless you
choose

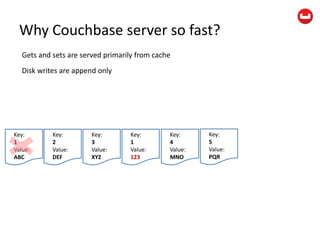

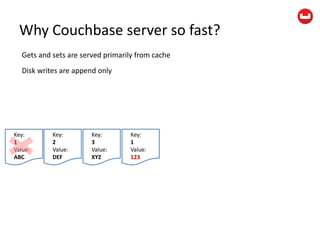

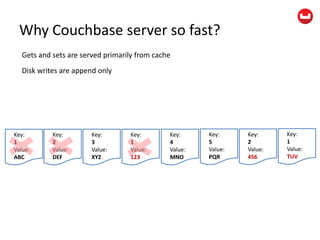

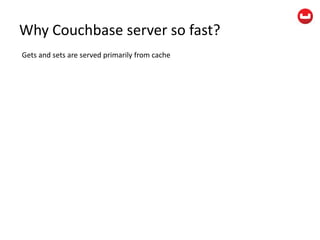

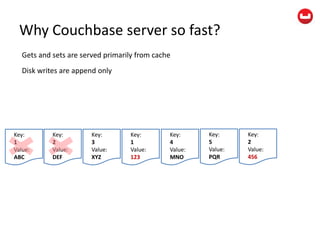

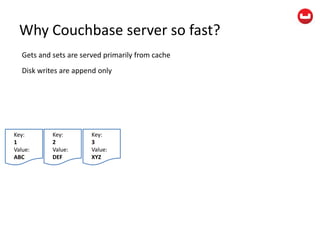

Why Couchbase server so fast?
Gets and sets are served primarily from cache

Disk writes are append only
Key:
1
Value:
ABC
Key:
2
Value:
DEF
Key:
3
Value:
XYZ

Key:
1
Value:
ABC
Key:
2
Value:
DEF
Key:
3
Value:
XYZ
Key:
1
Value:
123

Key:
1
Value:
ABC
Key:
2
Value:
DEF
Key:
3
Value:
XYZ
Key:
1
Value:
123
Key:
4
Value:
MNO
Key:
5
Value:
PQR

Key:
1
Value:
ABC
Key:
2
Value:
DEF
Key:
3
Value:
XYZ
Key:
1
Value:
123
Key:
4
Value:
MNO
Key:
5
Value:
PQR
Key:
2
Value:
456

Key:
1
Value:
ABC
Key:
2
Value:
DEF
Key:
3
Value:
XYZ
Key:
1
Value:
123
Key:
4
Value:
MNO
Key:
5
Value:
PQR
Key:
2
Value:
456
Key:
1
Value:
TUV

Key:
3
Value:
XYZ
Key:
4
Value:
MNO
Key:
5
Value:
PQR
Key:
2
Value:
456
Key:
1
Value:
TUV

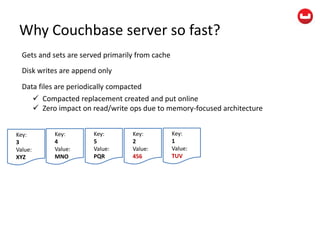

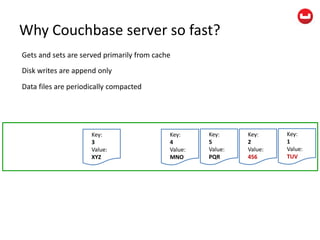

Data files are periodically compacted

Data files are periodically compacted
Key:
3
Value:
XYZ
Key:
4
Value:
MNO
Key:
5
Value:
PQR
Key:
2
Value:
456
Key:
1
Value:
TUV
 Compacted replacement created and put online
 Zero impact on read/write ops due to memory-focused architecture

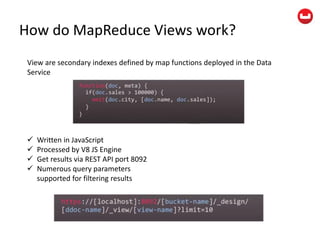

How do MapReduce Views work?
View are secondary indexes defined by map functions deployed in the Data
Service
 Written in JavaScript
 Processed by V8 JS Engine
 Get results via REST API port 8092
 Numerous query parameters
supported for filtering results

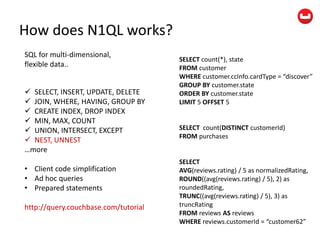

How does N1QL works?
SQL for multi-dimensional,
flexible data..
 SELECT, INSERT, UPDATE, DELETE
 JOIN, WHERE, HAVING, GROUP BY
 CREATE INDEX, DROP INDEX
 MIN, MAX, COUNT
 UNION, INTERSECT, EXCEPT
 NEST, UNNEST
…more
• Client code simplification
• Ad hoc queries
• Prepared statements
http://query.couchbase.com/tutorial
SELECT count(*), state
FROM customer
WHERE customer.ccInfo.cardType = “discover”
GROUP BY customer.state
ORDER BY customer.state
LIMIT 5 OFFSET 5
SELECT count(DISTINCT customerId)
FROM purchases
SELECT
AVG(reviews.rating) / 5 as normalizedRating,
ROUND((avg(reviews.rating) / 5), 2) as
roundedRating,
TRUNC((avg(reviews.rating) / 5), 3) as
truncRating
FROM reviews AS reviews
WHERE reviews.customerId = “customer62”

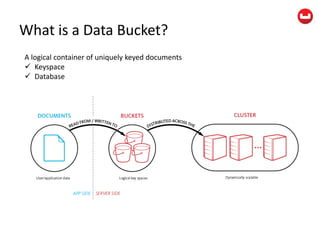

What is a Data Bucket?
A logical container of uniquely keyed documents
 Keyspace
 Database

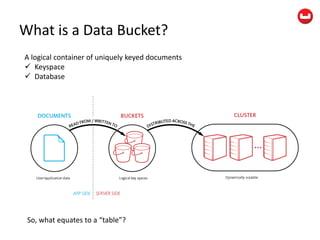

What is a Data Bucket?
A logical container of uniquely keyed documents
 Keyspace
 Database
So, what equates to a “table”?

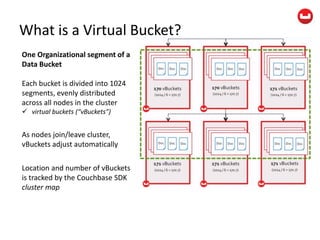

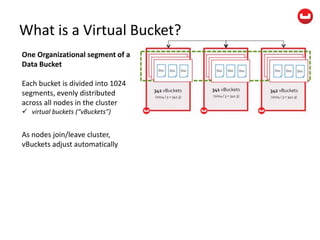

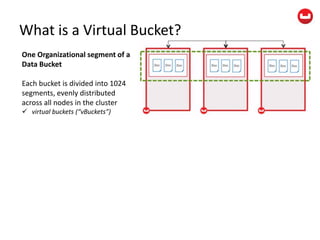

What is a Virtual Bucket?
One Organizational segment of a
Data Bucket
Each bucket is divided into 1024
segments, evenly distributed
across all nodes in the cluster
 virtual buckets (“vBuckets”)

Data Bucket
As nodes join/leave cluster,
vBuckets adjust automatically

Data Bucket
As nodes join/leave cluster,
vBuckets adjust automatically
Location and number of vBuckets
is tracked by the Couchbase SDK
cluster map

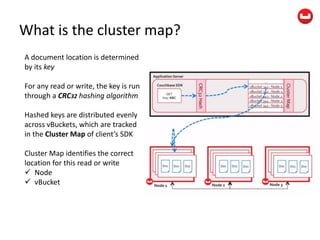

What is the cluster map?
A document location is determined
by its key
For any read or write, the key is run
through a CRC32 hashing algorithm
Hashed keys are distributed evenly
across vBuckets, which are tracked
in the Cluster Map of client’s SDK
Cluster Map identifies the correct
location for this read or write
 Node
 vBucket

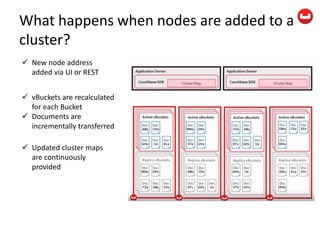

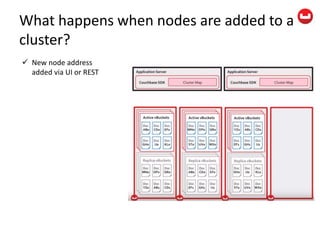

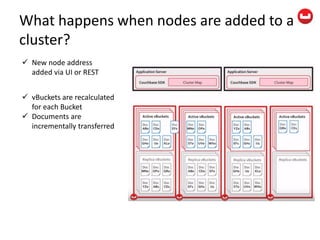

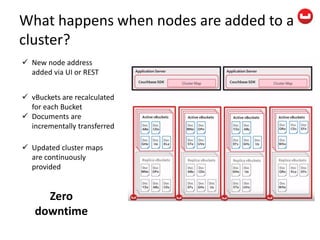

What happens when nodes are added to a
cluster?
 New node address
added via UI or REST

cluster?
 vBuckets are recalculated
for each Bucket
 Documents are
incrementally transferred

cluster?
for each Bucket
 Documents are
 Updated cluster maps
are continuously
provided

cluster?
for each Bucket
 Documents are
 Updated cluster maps
are continuously
provided
Zero
downtime

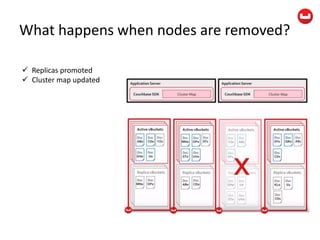

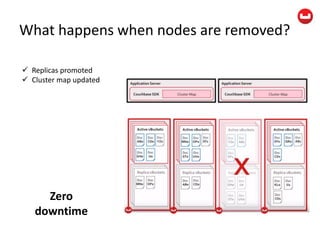

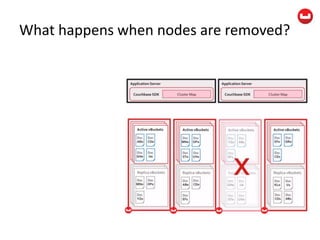

What happens when nodes are removed?

 Replicas promoted
 Cluster map updated

 Replicas promoted
 Cluster map updated
Zero
downtime

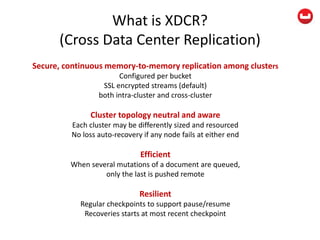

What is XDCR?
(Cross Data Center Replication)
Secure, continuous memory-to-memory replication among clusters
Configured per bucket
SSL encrypted streams (default)
both intra-cluster and cross-cluster
Cluster topology neutral and aware
Each cluster may be differently sized and resourced
No loss auto-recovery if any node fails at either end
Efficient
When several mutations of a document are queued,
only the last is pushed remote
Resilient
Regular checkpoints to support pause/resume
Recoveries starts at most recent checkpoint

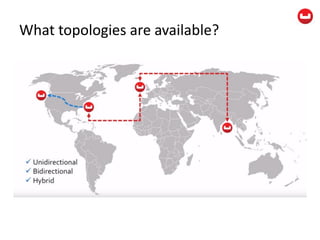

What topologies are available?

Couchbase SDKs & Tools
SDK manages connections, topology, documents, and queries
 Java
 C# / .Net
 Node.js
 PHP
 C/C++
 Python
 Ruby
Couchbase supports Reactive Programming
Couchbase is widely supported and easily integrated
 Analytical Databases: Apache Spark and Hadoop Connectors
 Business intelligence tools: ODBC/JDBC drivers
 Full text search: Apache Solr connector and Elasticsearch plugin
 Developer tools: Spring Data for Couchbase
 Big Data UI Integration: Talend connector for Couchbase
 Dozens more… Akka, Docker, Puppet, Ansible, New Relic, AppDynamics

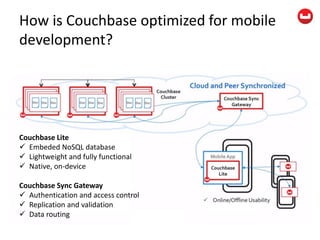

How is Couchbase optimized for mobile
development?
Couchbase Lite
 Embeded NoSQL database
 Lightweight and fully functional
 Native, on-device
Couchbase Sync Gateway
 Authentication and access control
 Replication and validation
 Data routing

Demo Time!
MAY THE DEMO GODS BE WITH US

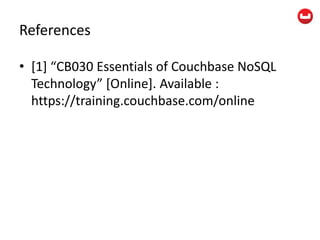

References
• [1] “CB030 Essentials of Couchbase NoSQL
Technology” [Online]. Available :
https://training.couchbase.com/online
